Viewing Data

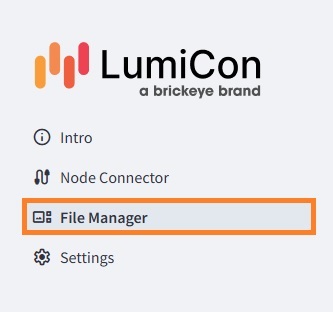

Navigate to the File Manager section to view & upload data

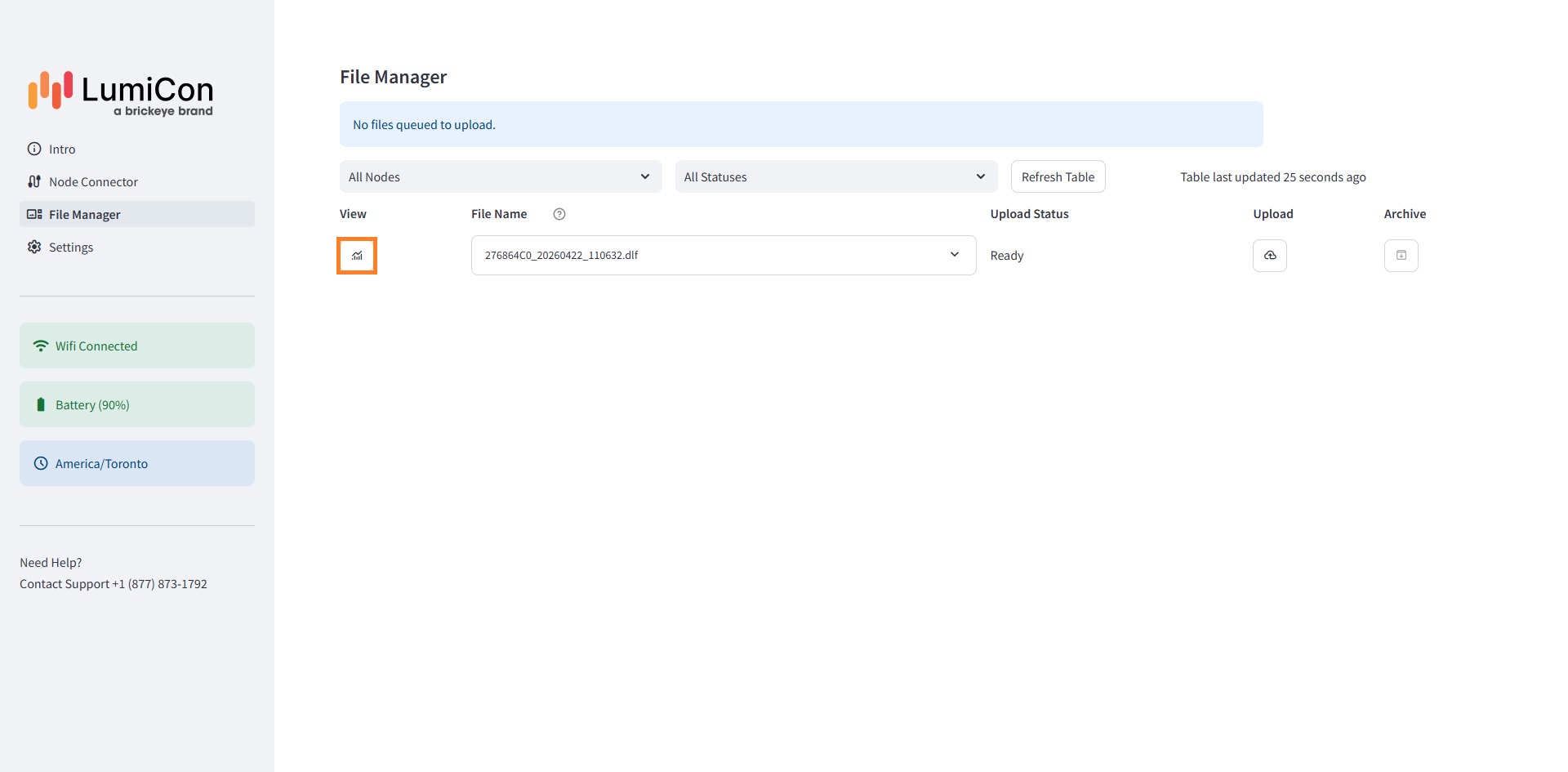

Each node's data will be downloaded as one file. To locally view the data, tap on the view data button

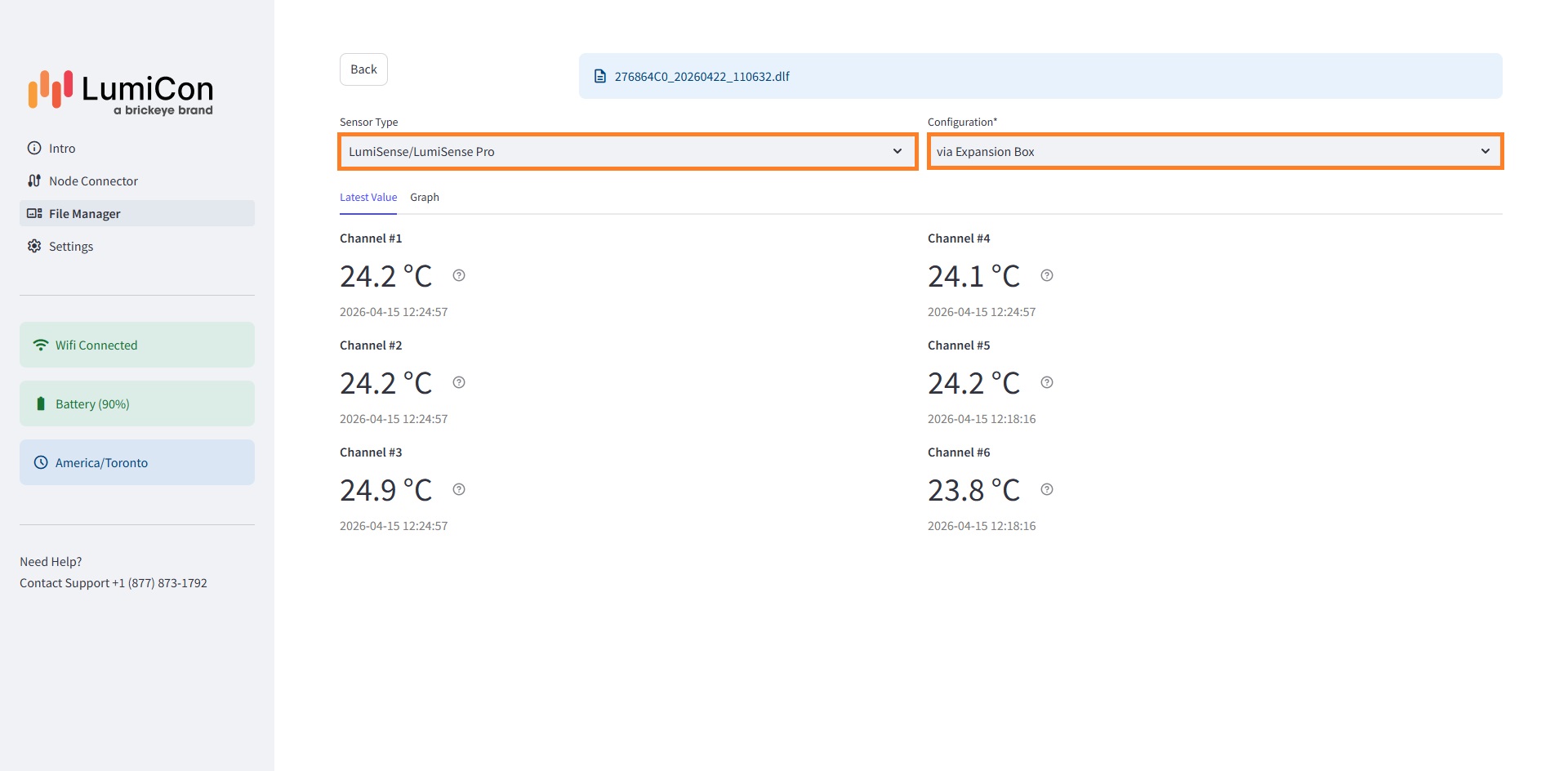

Filter for the data you are looking for on the node:

• Source data
  • LumiSense / LumiSense Pro
  • Ambient LumiNode
• Connection type
  • Direct to node
  • via Expansion box

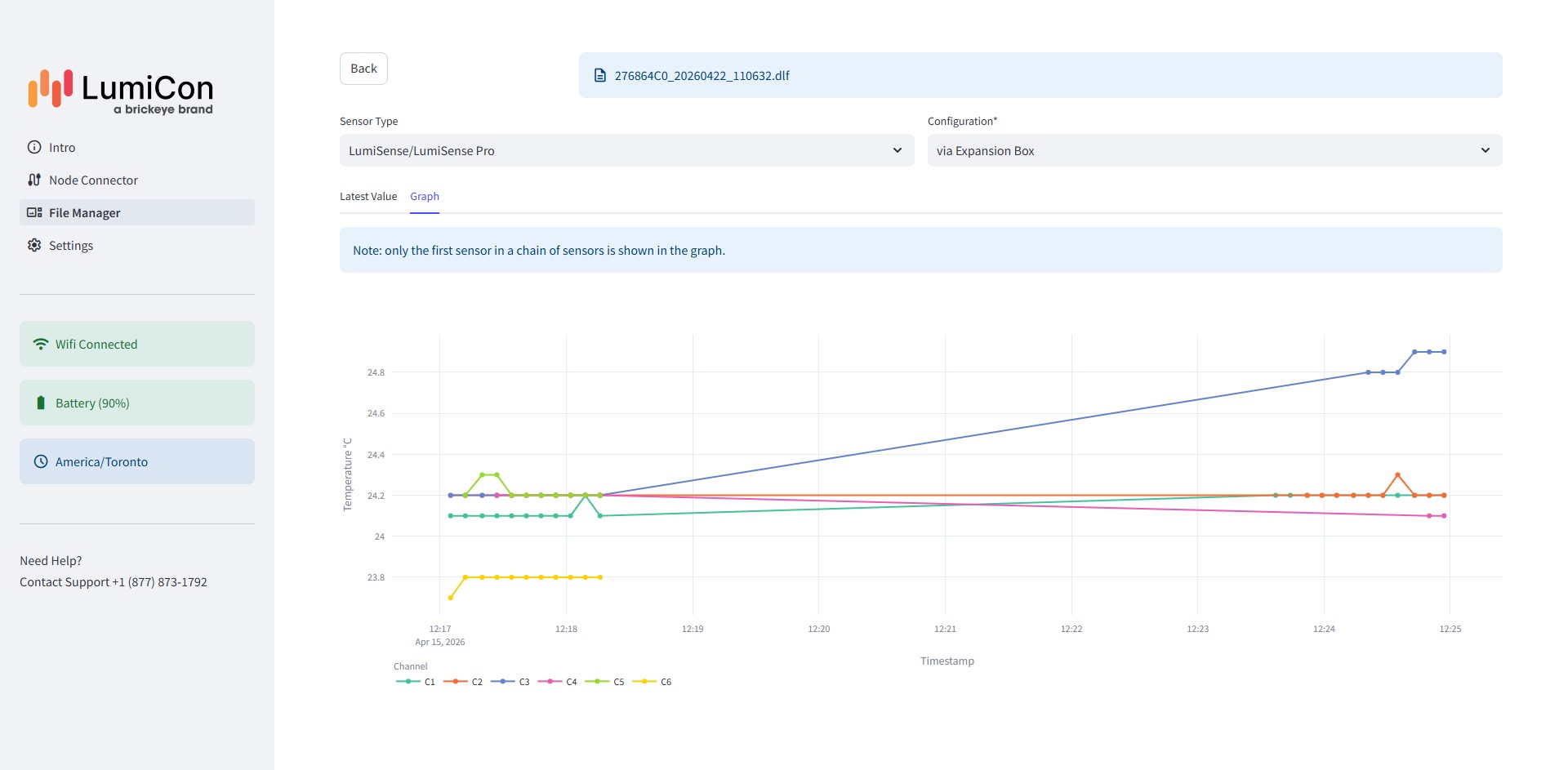

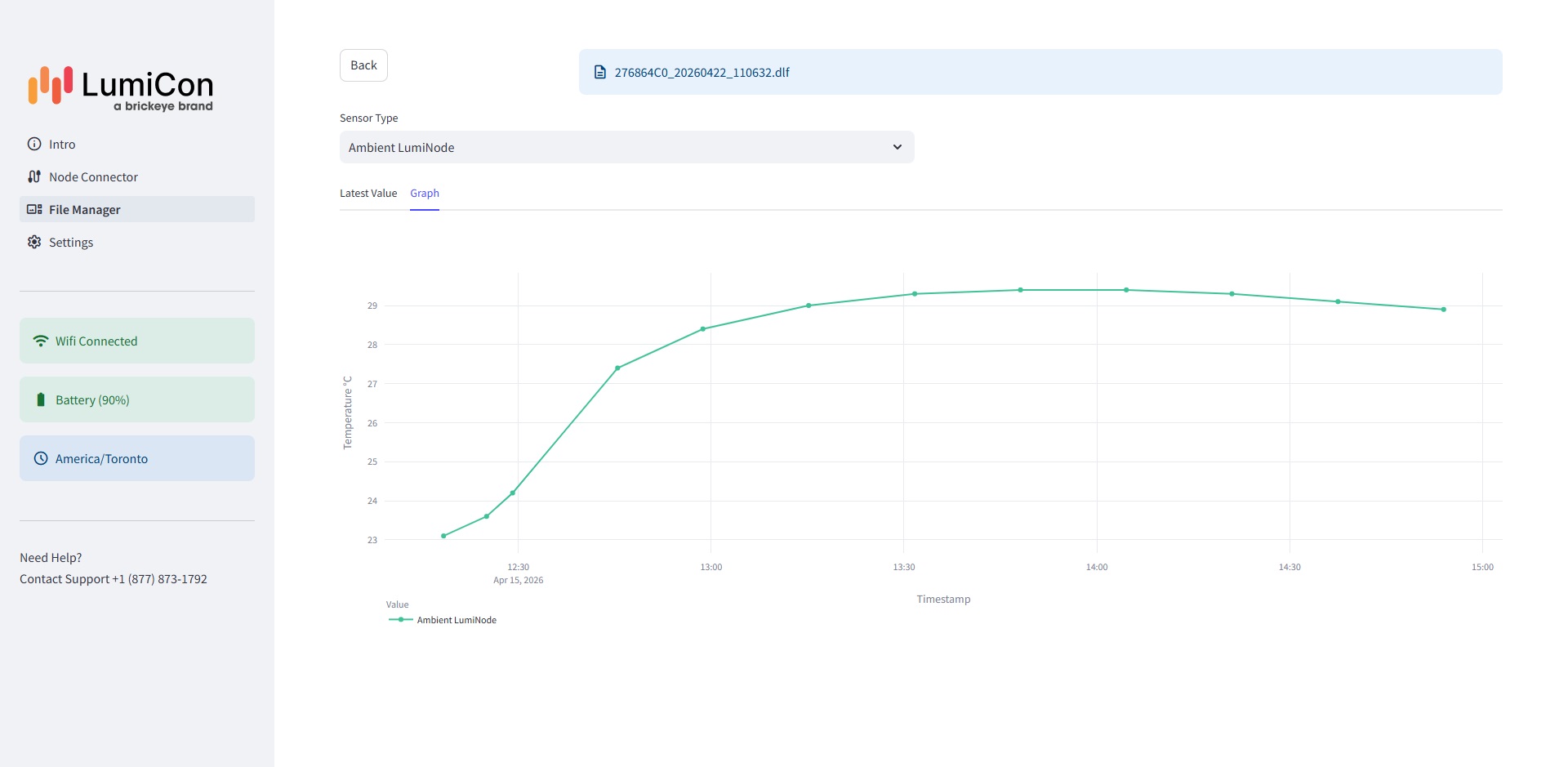

Review the data locally on the tablet (no network is needed)

Uploading Data

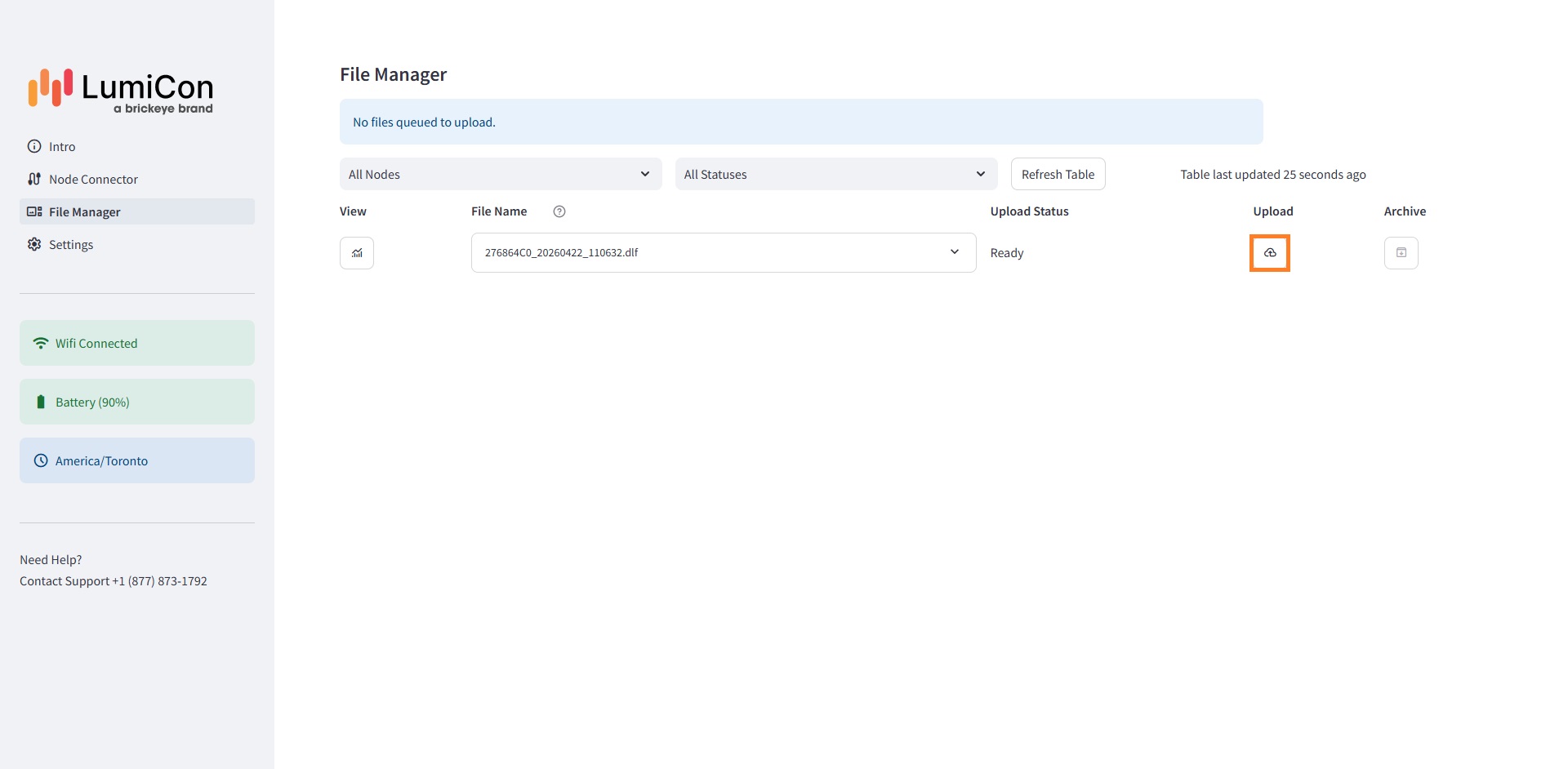

Uploading data allows the LumiCon app and web-based reporting to update with the latest readings. Data can be uploaded by tapping on the upload button.

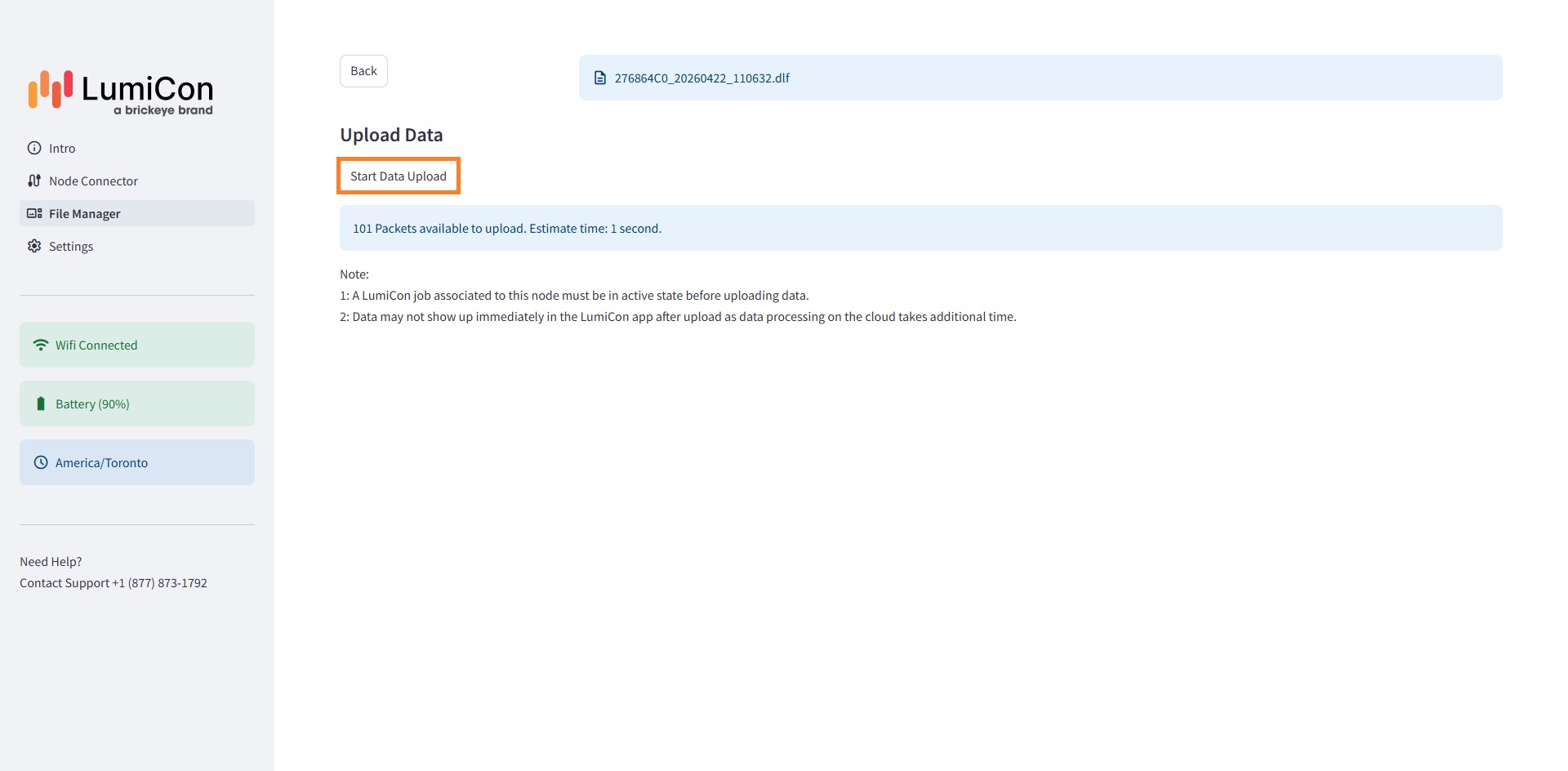

Tap Start Data Upload to begin the upload process. Multiple uploads can be queued.

• The tablet screen must remain on during upload
• A stable internet connection is required throughout
• The job(s) in the LumiCon app must be active

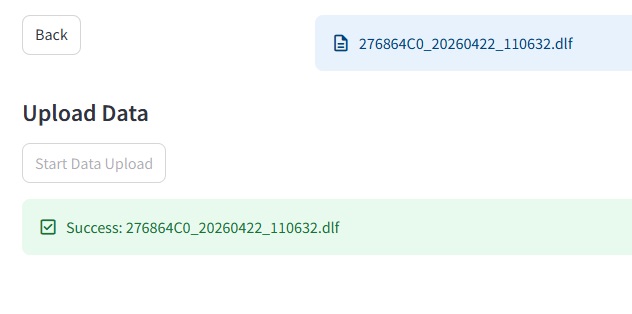

Done! Data is uploaded and can be viewed in the LumiCon app
