Downloading Data

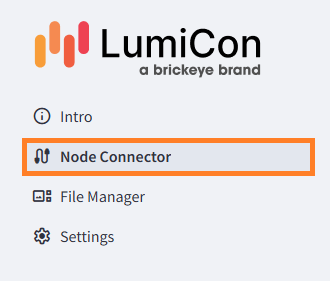

Navigate to the Node Connector section to download data from LumiNodes

Using the provided USB-A to 5-pin cable:

1. Connect the USB-A to the tablet
2. Connect the 5-pin to the front LumiNode connector

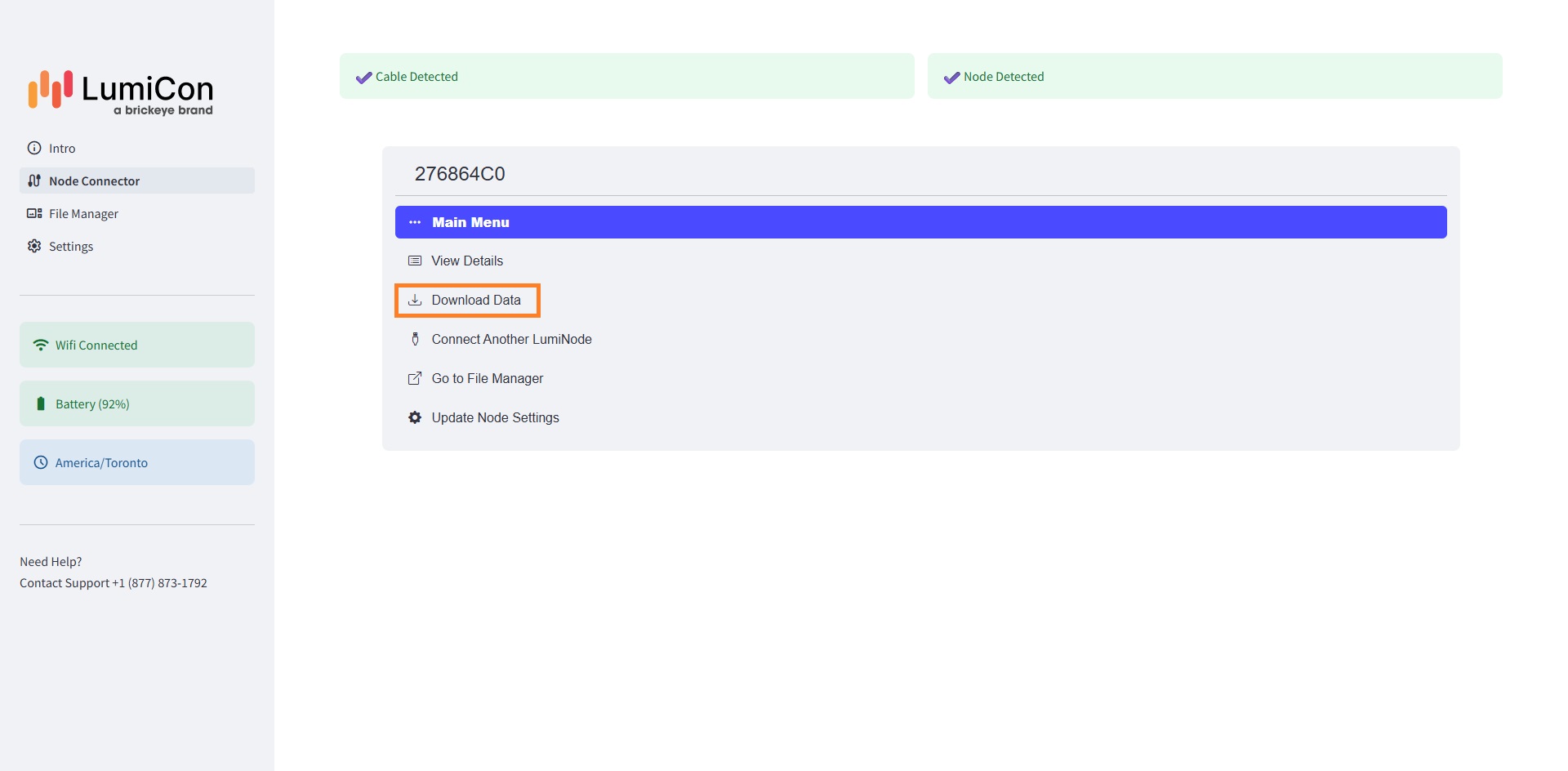

Tap on the Download Data option

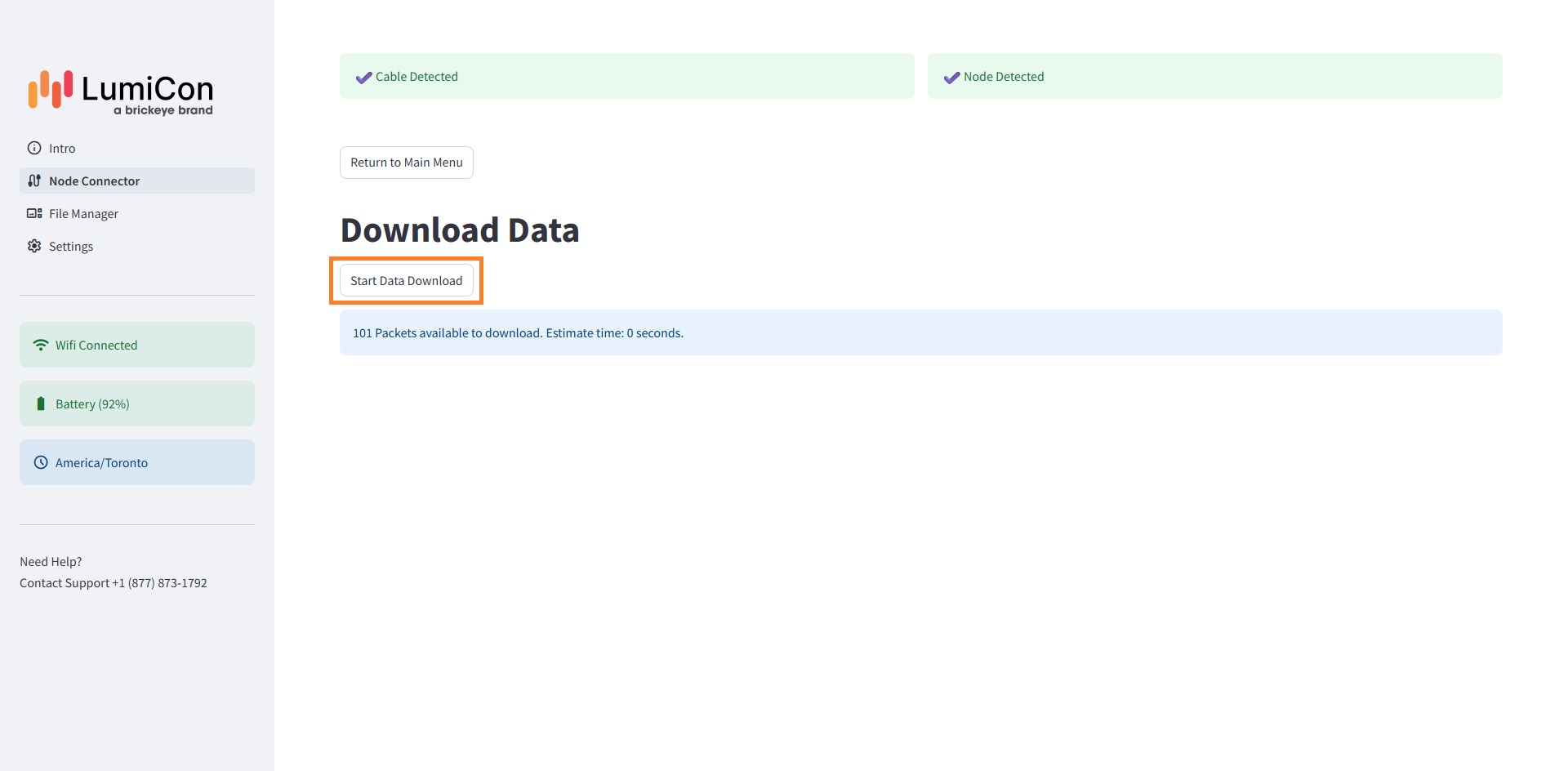

Start Data Download

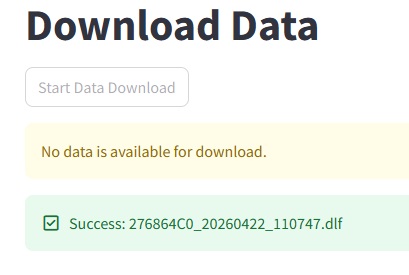

Done! The cable can now be disconnected:

1. Disconnect 5-pin cable from node
2. Reconnect any cables that were previously connected to node (wait 30 seconds between any cable disconnection)

The tablet connects to one node at a time and stores data from each node until it is uploaded. Please repeat the downloading process for each node that is not transmitting normally through cellular service
